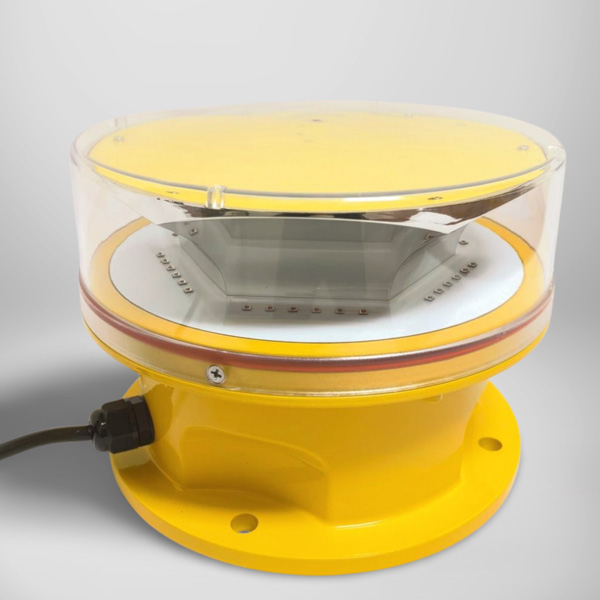

Aircraft warning light tower obstruction lighting faa l 864 medium intensity obstruction light
Detailed introduction
The FAA L864 Medium Intensity Obstruction Light is specifically designed to mark tall structures such as towers, wind turbines, and high-rise buildings, providing essential aircraft warning signals. This medium-intensity light meets both ICAO and FAA regulations, ensuring safety for aviation during daytime and nighttime operations. The L864 model emits a red light and flashes at a rate of 20-60 flashes per minute, making it highly visible to aircraft from a distance.
Engineered with high-performance LEDs, the L864 offers superior brightness and durability while maintaining energy efficiency. Its robust construction includes a UV-resistant polycarbonate lens and corrosion-resistant die-cast aluminum housing, ensuring long-term reliability in challenging environmental conditions. The light is designed for easy installation and minimal maintenance, making it an ideal choice for both new installations and retrofits.
This medium-intensity obstruction light is perfect for marking obstacles between 45 to 150 meters in height, providing an effective and cost-efficient solution for aviation warning needs. The L864 ensures reliable, long-lasting performance, enhancing safety for aircraft and reducing the risk of collisions with tall structures.
Overview:
The L-864 Type B and Type C Medium Intensity Aviation Obstruction Light (AO-MI-B2) is designed to mark obstacles ranging in height from 45 to 105 meters. This red light operates at night, flashing at a rate of 20-60 flashes per minute, fully compliant with ICAO and FAA regulations. Powered by high-performance CREE LEDs, it ensures reliable, stable performance and an extended operational lifespan. The L-864 provides a cost-effective, energy-efficient solution for enhancing aviation safety by clearly marking tall structures, while maintaining durability and long-term reliability even in harsh environmental conditions.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-864.
Features:
1. Powered by high-performance CREE LEDs, this light delivers exceptional brightness while minimizing energy consumption.
2. Available with flexible input voltage options: DC (12-48V) or AC (100-265V AC, 50-60Hz), ensuring compatibility with various installations.
3. The protective cover is made from UV-resistant polycarbonate, featuring a distinctive design to enhance durability and long-term performance.
4. Designed with advanced photometric technology, it ensures optimal light distribution and fully complies with ICAO and FAA standards.
5. The base is constructed from die-cast aluminum, providing excellent corrosion resistance, impact protection, and a long service life.
6. A specialized valve beneath the base enables air circulation while preventing water ingress, maintaining optimal temperature levels for the light.
7. Includes a built-in photocell for seamless automatic operation during both day and night.
8. Equipped with surge and lightning protection to ensure reliable performance in challenging weather conditions.
9. Offers a range of optional features, including GPS-synchronized flashing, sequence flashing, alarm relay, and more for enhanced functionality.
Specification:
|
Product Name |
Aircraft warning light tower obstruction lighting faa l 864 medium intensity obstruction light |
|
Mode NO.: |
Type B: AO-MI-B2; Type C: AO-MI-C2 |
|
Color: |
Red |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
Type B: 2,000cd±25% (Night) Type C: 2,000cd±25% (Night) |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
3-7 degree |
|
Flashing Characteristics:
|
Type B: 20-60FPM, Type C: Fixed Lighting.
|
|
Operation Mode: |
Night working, daytime off |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<15W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover, ABS reflector and Powder coated die-casting aluminum base. |
|
Weight(kg): |
2.5kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |

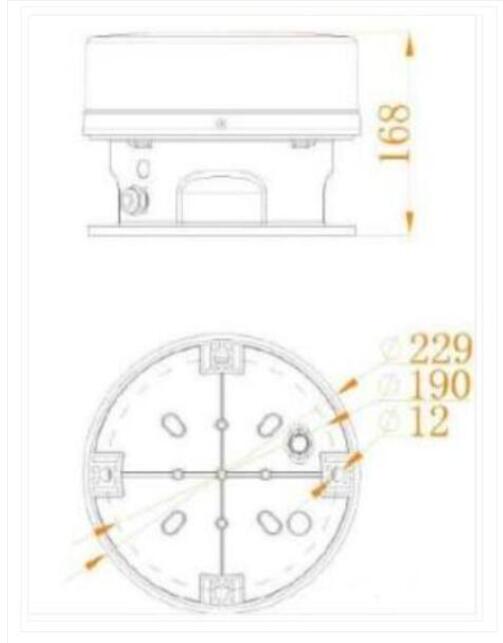

Dimension & Installation:
Applications:
The FAA L-864 Medium Intensity Obstruction Light is specifically designed to enhance aviation safety by marking tall structures such as communication towers, wind turbines, high-rise buildings, and other obstacles ranging from 45 to 105 meters in height. This red light flashes at a rate of 20-60 flashes per minute, operating at night to provide clear visibility to aircraft. It is fully compliant with ICAO and FAA regulations, ensuring that it meets the necessary standards for aviation safety.
The L-864 medium-intensity obstruction light is powered by high-performance LEDs, offering superior brightness, long lifespan, and energy efficiency. Its durable construction, including a UV-resistant polycarbonate cover and corrosion-resistant die-cast aluminum base, ensures reliable performance even in harsh environmental conditions. This light is commonly used on tall structures to provide consistent, reliable warning signals, preventing collisions and increasing safety for aircraft during approach and navigation. The L-864 is an essential component in tower obstruction lighting systems for both commercial and industrial applications.
