Detailed introduction
Overview:

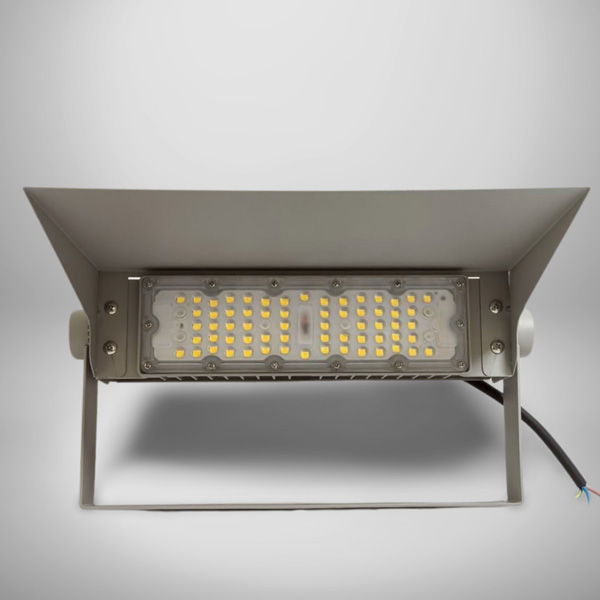

Our helipad floodlights are expertly designed to deliver outstanding performance and reliability, ensuring safe and efficient heliport operations. Available in 40W, 50W, and 60W configurations, these lights provide superior illumination that meets the stringent requirements of international aviation standards.
Built with advanced LED technology, these floodlights offer high luminous efficiency, low energy consumption, and an extended service life. Constructed from durable, weather-resistant materials, they are designed to endure harsh environmental conditions, including extreme temperatures, heavy rain, and UV exposure. The compact, lightweight design facilitates easy installation and maintenance.
Featuring precise beam control and anti-glare properties, these floodlights enhance visibility for pilots during takeoffs and landings, even in challenging low-visibility situations. Fully compliant with ICAO and FAA regulations, they ensure safety and adherence to aviation lighting standards.
Ideal for both commercial and private heliports, our floodlights combine robust performance with energy efficiency, providing a cost-effective and eco-friendly solution. Rely on our lighting systems for dependable operation in the most demanding aviation environments.
Compliance:
1. ICAO Annex 14 Volume II Heliports 5.3.
2. FAA AC 150/5390-2B Heliport Design Guide
Features:
1. **Equipped with high-efficiency, ultra-bright LEDs**, these lights provide exceptional brightness while maintaining low energy consumption for enhanced efficiency.
2. **Designed for versatile compatibility**, they operate seamlessly with a wide AC input voltage range of 100-265V at 50-60Hz.
3. **Constructed with a durable aluminum housing**, finished with an electrostatic powder coating, offering superior resistance to harsh weather conditions and environmental wear.
4. **Featuring an adjustable tilt mechanism**, the luminaire allows precise positioning to achieve optimal heliport illumination. Its advanced photometric design ensures outstanding light distribution, fully compliant with ICAO and FAA standards.
5. **With a low-profile design**, the assembly stands less than 25 cm in height, ensuring a sleek, unobtrusive appearance.
6. **Integrated with an anti-glare system**, the light enhances visibility and ensures safe landing conditions for pilots, even in challenging environments.
Specification:
|
Product Name |
Helipad flood lights 40W 50W 60W for heliport lighting AO-HP-F1 |
|
Mode NO.: |
AO-HP-F1 |
|
Color: |
White |
|
Light source:
|
LEDs |
|
luminous efficiency: |
>120lm/w |
|
Beam Angle: |
30 * 60 degree(with Anti-glare design ) |
|
Installation type: |
Elevated (surface installation) |
|
Flashing Characteristics:
|
Fixed light
|
|
Operation Mode: |
24 hours after power on |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
40W/50W/60W |
|
Circuit Protection: |
Integrated |
|
Helipad flood Light Material: |
anti-glare reflector , aluminium casing ,steel powder coated bracket. |
|
Weight(kg): |
2kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Size: |
H 17.5cm x W 35cm x L 25.5cm |

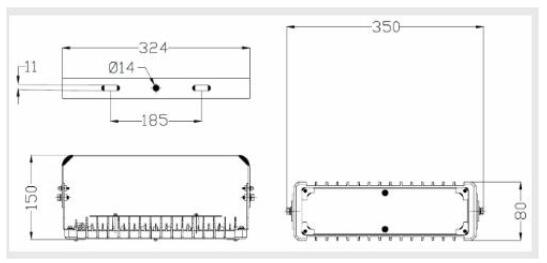

Dimension:
Applications:
Helipad floodlights are expertly engineered to provide dependable and efficient lighting for heliports across diverse environments. These lights play a critical role in ensuring safe operations during takeoffs and landings, particularly in low-light or adverse weather conditions.
Widely utilized in hospitals for air ambulance services, emergency rescue operations, offshore oil platforms, and aviation facilities, these floodlights are equally suited for high-rise rooftops, industrial sites, and remote heliports. Their versatility makes them an ideal solution for both private and commercial heliport applications.
