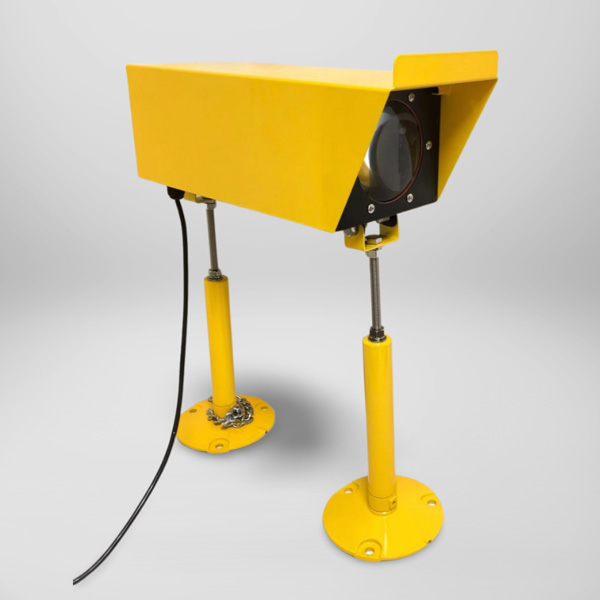

Visual approach slope indicator glide path indicator VASI system AO-HP-VASI

The Visual Approach Slope Indicator (VASI) system is a critical visual aid used in aviation to ensure safe and precise aircraft landings. It provides pilots with a clear indication of their glide path relative to the ideal descent angle for a runway. VASI systems use a combination of red and white lights to convey whether an aircraft is too high, too low, or on the correct glide slope.

The AO-HP-VASI (Abbreviated Obstruction High Precision VASI) is an advanced variation designed for runways with obstructions or where enhanced precision is required. It incorporates modifications to offer a more tailored glide path for complex or high-risk environments, ensuring safety without compromising efficiency.

AO-HP-VASI systems are particularly valuable in airports with challenging terrain, limited space, or special operational requirements, providing pilots with accurate and reliable descent guidance in various conditions.

     Overview:

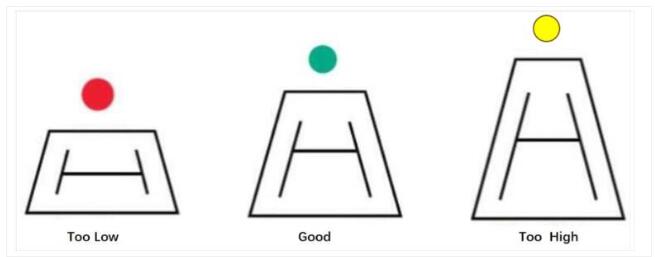

Our Visual Approach Slope Indicator (VASI) utilizes cutting-edge LED technology to provide pilots with precise and reliable glide slope guidance during their final approach to the helipad. Featuring a combination of yellow, green, and red light signals, the system offers clear, color-coded visual cues that indicate whether the approach path is too high, too low, or on target. These intuitive signals ensure enhanced safety and accuracy, guiding pilots to achieve the correct landing trajectory with confidence. The light indications are as follows:

     Compliance:

1. ICAO Annex 14 Volume II Heliports 5.3.

2. FAA  AC 150/5390-2B Heliport Design Guide

     Features:

1. Features high-intensity, ultra-bright branded LEDs that deliver exceptional performance with minimal energy consumption.

2. Offers versatile input voltage compatibility, supporting both DC (12-48V) and AC (100-265V, 50-60Hz) power sources.

3. Equipped with a clear polycarbonate lens, optimized for superior light focus while providing outstanding resistance to UV rays and corrosion.

4. Utilizes advanced photometric engineering to ensure precise light distribution, fully compliant with ICAO and FAA standards.

5. Built with durable stainless steel housing, offering excellent resistance to corrosion, as well as protection against shocks and vibrations.

6. Includes a bright yellow base coated with UV-resistant powder for enhanced visibility under all lighting conditions.

7. Features a specially designed fragile coupling that minimizes secondary damage to helicopters in the event of an impact.

     Specification:

     Dimension & Installation:

     Applications:

The Visual Approach Slope Indicator (VASI) system, including the advanced AO-HP-VASI (Abbreviated Obstruction High Precision VASI), is a critical visual aid widely utilized in aviation for guiding aircraft and helicopters during landing approaches. By providing clear and reliable glide path indicators, the system enhances landing safety, precision, and efficiency.

Applications of the VASI and AO-HP-VASI:

1. Airports and Helipads: Used to ensure safe and accurate descent paths for aircraft and helicopters, particularly in environments with complex terrain or limited visibility.

2. Obstruction-Aware Approaches: The AO-HP-VASI system is specially designed for runways or helipads with obstacles nearby, offering a precise glide path to mitigate risks.

3. Night and Low-Visibility Operations: With advanced LED technology and photometric engineering, the system provides clear visual cues in challenging lighting and weather conditions.

4. Military and Emergency Services: Utilized in demanding environments where precise landing guidance is critical for rapid deployment and safety.

By offering precise and real-time visual guidance, the VASI and AO-HP-VASI systems ensure compliance with international aviation standards (ICAO and FAA), significantly enhancing operational safety and reliability.
