Detailed introduction
The AO-HP-W1 Helicopter Windsock is a reliable and high-performance solution for aviation safety, providing accurate wind direction and speed indication. Designed for use at airports, helipads, and other aviation facilities, it features a durable, weather-resistant fabric for long-lasting performance in harsh environments.
Available with optional lighting, this lighted windsock ensures visibility during nighttime operations or low-light conditions. Built to meet stringent aviation standards, the AO-HP-W1 is easy to install and maintain, making it a dependable choice for enhancing safety and efficiency in aviation operations.
Overview:
The AO-HP-W1 Lighted Windsock is a state-of-the-art solution designed for airports and helipads, offering internal illumination for superior visibility. It features an obstruction light at the top and an integrated LED floodlight inside the wind cone, ensuring consistent lighting under all conditions. The windsock and lighting components rotate in unison, providing precise wind direction indication at all times. As an essential component of aerodrome safety, the AO-HP-W1 meets stringent aviation standards, making it a reliable wind direction indicator for safe and efficient operations.
Compliance:
1. ICAO Annex 14 Volume II Heliports 5.3.
2. FAA AC 150/5390-2B Heliport Design Guide
Features:
1. High-Intensity Illumination: Features ultra-bright branded LEDs, providing powerful lighting with minimal energy consumption.
2. Wide Power Compatibility: Supports a range of input voltages, seamlessly working with DC (12-48V) and AC (100-265V, 50-60Hz) power sources.
3. Durable Construction: Built with corrosion-resistant and wind-resistant stainless steel 304 for the heliport pole, ensuring exceptional longevity and performance.
4. Optimal Lighting Design: Includes a top-mounted obstruction light and an internal floodlight within the wind cone for superior illumination in all conditions.
5. Rotatable Functionality: Designed with a freely rotating wind cone, ensuring accurate alignment with wind direction.
6. Customizable Heights: Offers adjustable pole heights from 1m to 5m (or more), catering to diverse installation needs.
7. Vivid Color Options: Available in highly visible colors, including orange (Nylon) and red/white (PVC), to enhance clarity in any environment.
Specification:
|
Product Name |
Helicopter wind sock lighted windsock aviation windsock AO-HP-W1 |
|
Mode NO.: |
AO-HP-W1 |
|
Color: |
Obstruction light red color, flood light white color |
|
Light source:
|
LEDs |
|
Pole height: |
1m, 1.5m(standard), 2m, 3m, 4m... etc |
|
Special design: |
Internally Illuminated Heliport Wind Cone |
|
Windsock dimension: |
Pole height:＜4m, Length: 1.2m, big diameter: 300mm, small diameter: 150mm; Pole height: 4m-6m, Length: 2.4m, big diameter: 600mm, small diameter: 300mm; Pole height: ＞6m, Length: 3.6m, big diameter: 900mm, small diameter: 450mm. |
|
Flashing Characteristics:
|
steady burning, fixed light
|
|
Operation Mode: |
24 hours after power on |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption <12W |
|
Wind resistance: |
80m/s |
|
Wind cone heliport Material: |
stainless steel 304 pole, Nylon or PVC wind cone |
|
Windsock color: |
Orange, red/white ( other is available) |
|
IP Grade: |
IP65 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. Frangible coupling is optional 2. Solar power system |

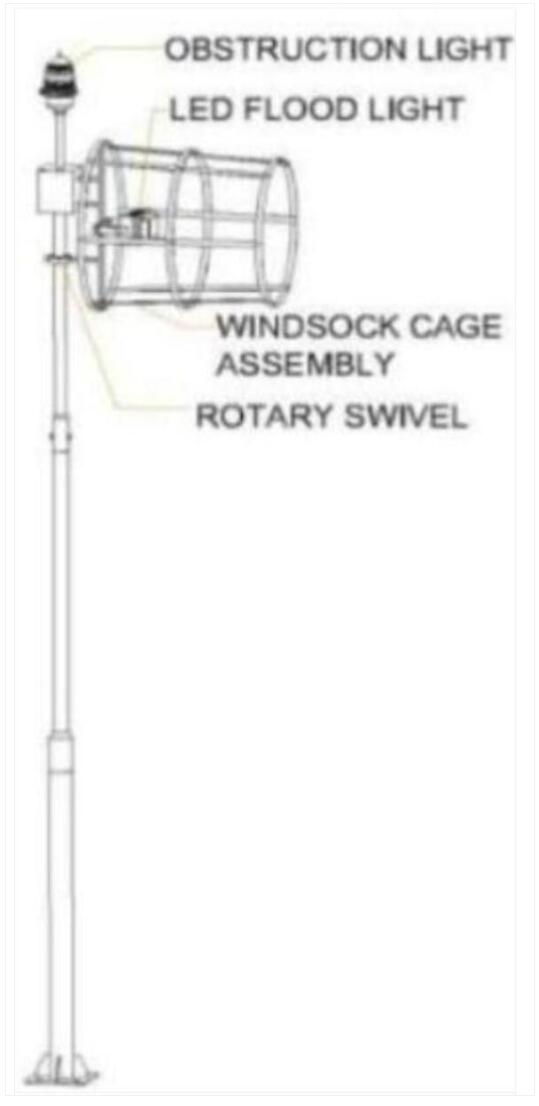

Dimension & Installation:

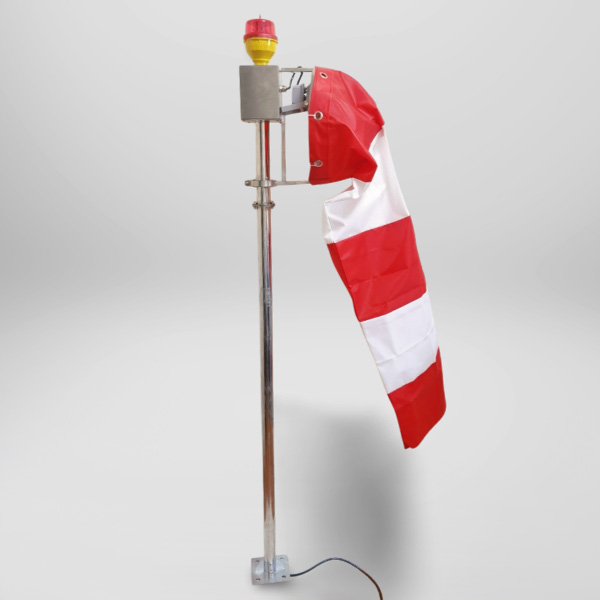

(Photo above is only for reference, the final is customized for different height)
Applications:
The AO-HP-W1 Helicopter Windsock is specifically designed for a wide range of aviation applications, providing reliable wind direction and speed indication. Ideal for use at airports, heliports, and helipads, it enhances operational safety by ensuring accurate and visible wind monitoring.
This lighted windsock is equipped with internal illumination and an obstruction light, making it suitable for both daytime and nighttime operations. Its robust construction and corrosion-resistant materials ensure durability in harsh weather conditions, while the freely rotatable design allows the windsock to align seamlessly with wind direction.
Whether for aviation safety, emergency landing zones, or industrial facilities, the AO-HP-W1 meets stringent aviation standards and offers a dependable solution for critical wind indication needs.
