Detailed introduction

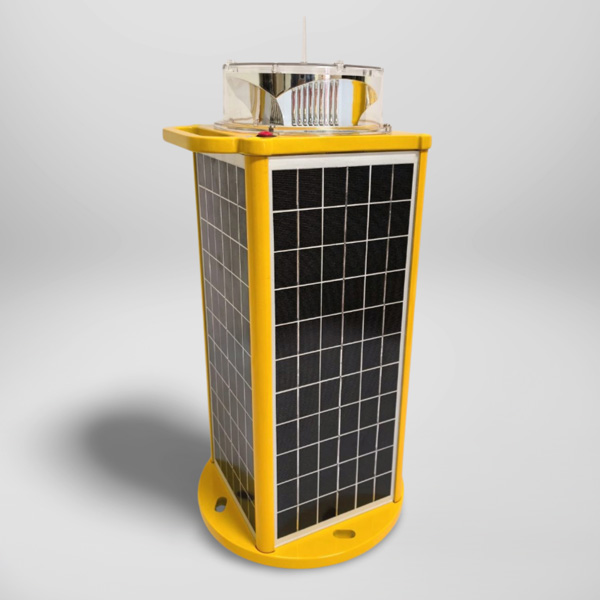

The AO-ML-5S Solar Marine Lantern is a high-performance, self-contained lighting solution designed for maritime navigation and safety. With a visibility range of 8-11 nautical miles, it is ideal for marking buoys, offshore platforms, docks, and other critical marine installations.
Equipped with efficient solar panels and a reliable lithium-ion battery, the AO-ML-5S ensures continuous operation even in challenging weather conditions. Its advanced LED technology, compliant with IALA standards, offers customizable light characteristics to meet diverse navigational requirements.
Overview:
The Solar LED Marine Lantern AO-ML-5S delivers a visibility range of 8-11 nautical miles, making it an excellent choice for navigation and safety. This all-in-one lantern is equipped with high-efficiency solar panels and a dependable lithium-ion battery, ensuring consistent power supply. Ideal for deployment on buoys and offshore sites, it enhances safety and navigation in both marine and river environments. Built for longevity, this solar-powered LED lantern is engineered to withstand harsh conditions, offering a robust, low-maintenance solution tailored for maritime safety needs.
Compliance:
1. IALA Recommendations E-200-1.
Features:
1. Energy-Efficient Design: Engineered for low power consumption, this lantern ensures prolonged operation while minimizing energy expenses.
2. State-of-the-Art LED Technology: Incorporating advanced LED technology, it adheres to IALA Recommendations E-200-1, reducing maintenance demands and cutting operational costs.
3. Sturdy Build: Crafted with a UV-protected polycarbonate structure, the lantern offers exceptional durability to withstand challenging marine conditions.
4. Resilient and Durable: The UV-resistant polycarbonate lens is both shockproof and corrosion-resistant, providing reliable protection and long-lasting performance.
5. Customizable Lighting Options: With 366 programmable light patterns, the lantern is adaptable to various navigational and signaling requirements.
6. Autonomous Solar-Powered System: Its self-contained, 4-sided solar panel design ensures independent operation without external power dependencies.
7. Smart Day/Night Adjustment: A built-in photocell enables automatic transitions between daytime and nighttime functionality, ensuring hassle-free operation.
Specification:
|
Product Name |
Solar marine lantern 8-11nm AO-ML-5S |
|
Mode NO.: |
AO-ML-5S |
|
Color: |
Red/Green/yellow/white/blue etc |
|
Light source:
|
LEDs |
|
Light Intensity(cd): |
>1800cd |
|
Horizontal Output(degrees): |
360 degree |
|
Visable Range: |
8-11NM (@ Tc=0.74) |
|
Flashing Characteristics:
|
366 types flashing Characteristics(adjust by IR remote controller)
|
|
Operation Mode: |
Night working, daytime off |
|
Power System: |
Solar power system (Mono-crystalline Silicon solar panel + lithium battery) |
|
Power Consumption(W): |
Average Power consumption<4W |
|
Autonomy (hours): |
Fixed Light: 50hrs, Flashing: 150hrs |
|
Marine lantern Material: |
PC cover lens, aluminum casing |
|
Weight(kg): |
9kg |
|
IP Grade: |
IP68 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional: |
1. External charging port 2. GPS sync 3. IR remote control 4. RS 232 port 5. GSM monitoring |

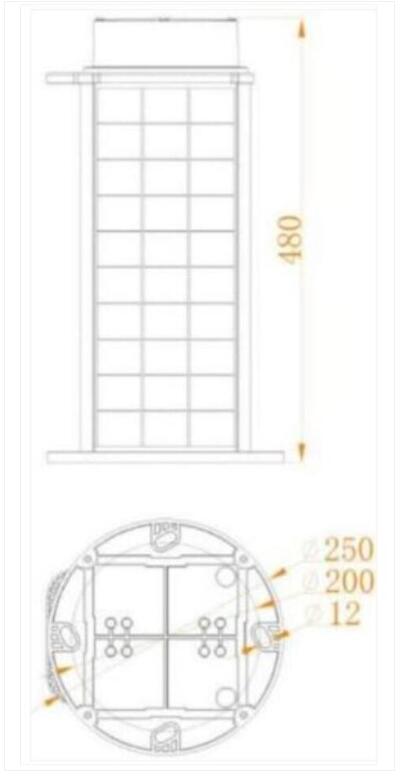

Dimension & Installation:
Applications:
The Solar Marine Lantern AO-ML-5S is specifically designed for a wide range of maritime and offshore applications. With a visibility range of 8-11 nautical miles, it is ideal for marking buoys, offshore platforms, aquaculture farms, docks, and other critical marine installations.
This self-contained solar-powered lantern ensures reliable performance in harsh environmental conditions, making it suitable for coastal and riverine navigation. Its advanced LED technology and customizable light patterns enhance visibility and safety, while compliance with IALA standards guarantees effective signaling.
